Description

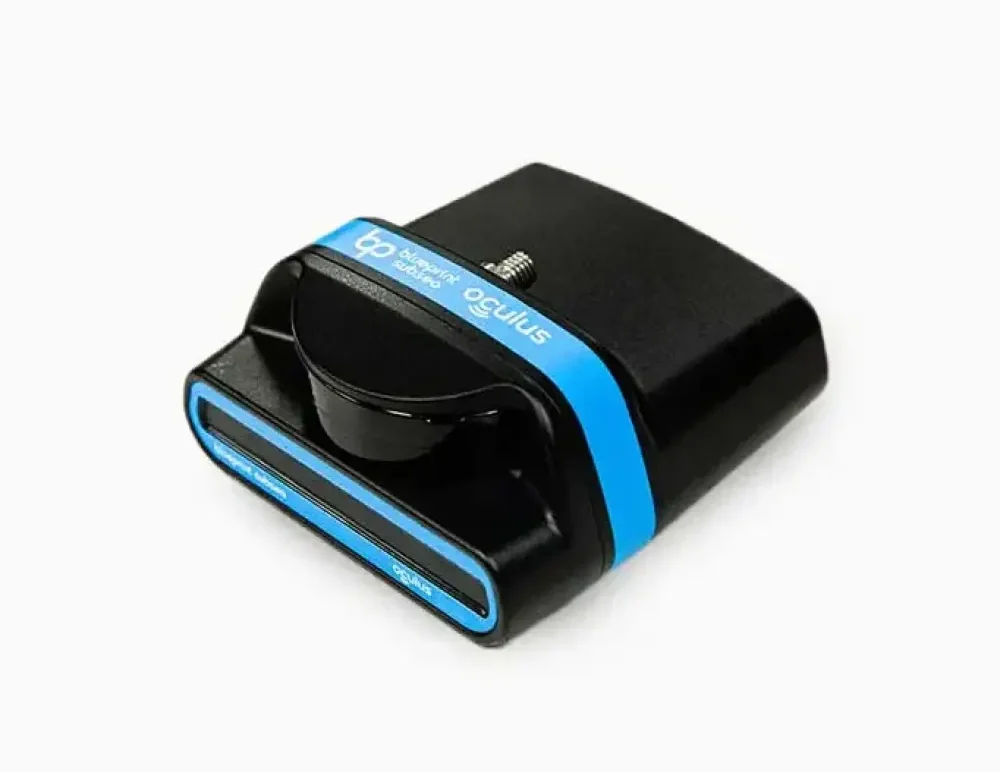

The Oculus M-Series from Blueprint Subsea delivers high-performance multibeam imaging sonar in a compact, rugged design. Designed for real-time underwater imaging, it supports frequencies from 375kHz to 3.0MHz, enabling clear, detailed visuals at both short and long ranges – from 0.1m to 200m.

Featuring wide 130° horizontal and 20° vertical fields of view, angular resolution as fine as 0.25°, and ultra-fast update rates up to 40Hz, the M-Series provides exceptional situational awareness in a wide range of underwater environments.

Compatible with small inspection-class ROVs to larger work-class platforms, the sonar supports depth ratings up to 500m, while integrated pressure and temperature sensors ensure precise sound velocity calibration. With intuitive software and simple Ethernet integration, the Oculus M-Series is plug-and-play ready for any mission.

Key Features:

• Frequencies: 375kHz to 3.0MHz

• Operating Range: 0.1m – 200m

• Dual-frequency models available

• Wide Aperture: 130° (H) x 20° (V)

• Angular Resolution: as low as 0.25°

• Range Resolution: down to 2mm

• Ultra-fast 40Hz update rate

• Depth Rating: 500m (M-Series)

• Compact and lightweight (980g in air)

• Built-in pressure & temperature sensors

• Ideal for ROVs and AUVs

Model Variants Include:

• M370s – 375kHz, 200m range

• M750d – Dual 750kHz/1.2MHz, up to 120m/40m

• M1200d – Dual 1.2MHz/2.1MHz, up to 40m/10m

• M3000d – Dual 1.2MHz/3.0MHz, ultra-fine resolution

Applications:

• Underwater inspection & navigation

• Object detection & tracking

• Infrastructure surveys

• Search and rescue operations

Whether you need wide-range situational awareness or high-resolution close-up imaging, the Oculus M-Series has a model to meet your challenge.
